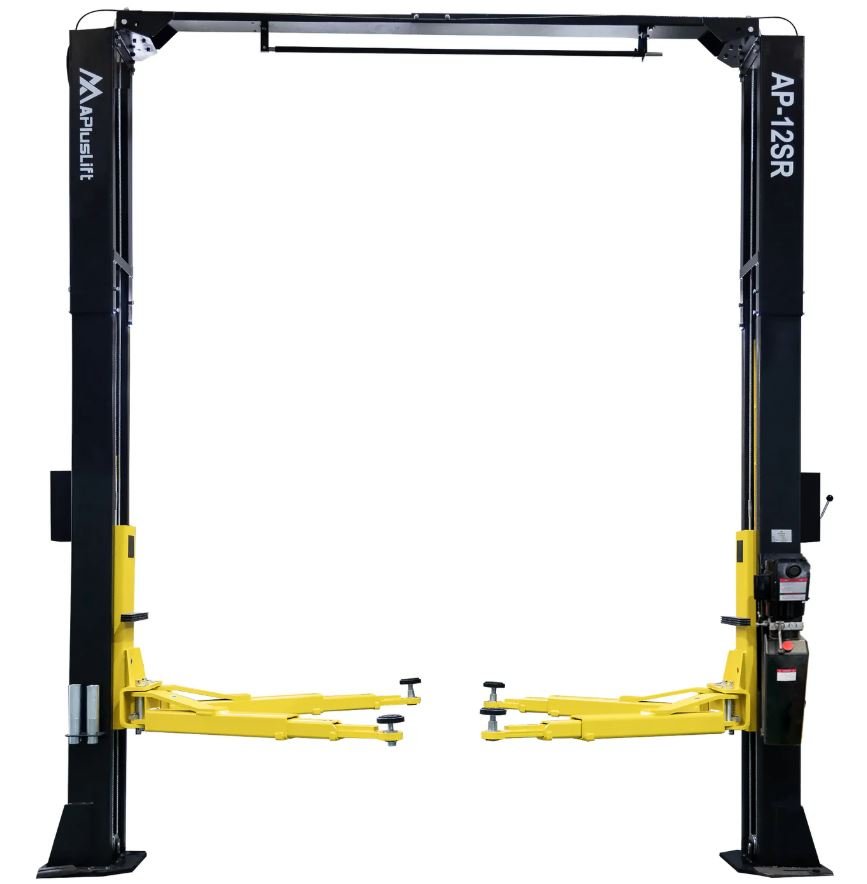

APlusLift 12,000LB 2-Post Overhead Single Release Direct Drive Car Lift with 3 Year Warranty - AP-12SR
$ 2,699
$ 4,795
All 2-Post Car Lifts
Industry leading 3 YEAR WARRANTY (a $499 value!)
Single Point Safety Lock Release System
Two Set of 3" and 6" Tall Truck Adapters Included; 6'7" Lift Height Maximum with Truck Adapters
CE Certified Lift Structure and Hydraulic System - Tested for 115% Dynamic Load Capacity and 150% Static Load Capacity
All Robot Welded Structure with Durable Powder Coated Finish
APlusLift AP-12SR is a 12000LB single point release overhead car lift (auto hoist) built with quality materials and good workmanship.
We are proud to offer an industry leading 3 year warranty for all parts (a $499 value)! We have all replacement and optional parts available for our lifts.
Free shipping to lower 48 states with forklift (or similar) on-site, or free pickup at nearby terminal. Car lifts require on-site forklift (no liftgate). We strongly recommend against renting a forklift; expense not reimbursed. See shipping policy below for limited access/remote/high-cost areas.
Warehouse Pickup Locations (Contact Us for $300 Discount): Tacoma (WA)
Specifications : | |||||||||
| Model | AP-12SR (This Model) | AP-10SR (for Comparison) | |||||||
| Manual | AP-12SR Manual | AP-10SR Manual | |||||||
| Style | Overhead | Overhead | |||||||
| Lock Release | Single Point Release | Single Point Release | |||||||
| Warranty | 3 Years (36 Months) | 3 Years (36 Months) | |||||||
| Lifting Capacity | 12,000 LB | 10,000 LB | |||||||
| Overall Height | 165" | 143 3/16" | |||||||
| Overall Width | 149" | 134 5/16" | |||||||
| Maximum Lift height with Truck Adapters | 79" | 81" | |||||||
| Maximum Lift height without Truck Adapters | 70" | 75" | |||||||
| Minimum Height of Adjustable Pads from Ground | 4" | 4" | |||||||
| Drive Through Width (Carriage to Carriage) | 109" | 100" | |||||||
| Column to Column Width | 123" | 109" | |||||||
| Column Cross Section | 14 3/8"L x 7 13/16"W | 11"L x 7"W | |||||||
| Driving Mode | Dual hydraulic cylinders, direct drive | Dual hydraulic cylinders, chain drive | |||||||
| Motor | 220V Single Phase 3HP with Inverter Motor (recommend a 30A breaker) | 220V Single Phase 3HP (recommend a 30A breaker) | |||||||
| Hydraulic Oil | 3-5 gallons AW32/AW46 (Not Included) | 3-5 gallons AW32/AW46 (Not Included) | |||||||
| Time to full rise | 75 seconds | 50 seconds | |||||||
| Shipping Weight | 2500 LB | 1400 LB and 120 LB | |||||||
| Shipping package size | 117"L x 22"W x 50"H |
| |||||||
| Arm Assembly | Symmetrical Arm Assembly | Combo (Symmetrical and Asymmetrical) Arm Assembly | |||||||
| Front Arms | Straight Front 3 Stage reach from 37 1/2" to 72 3/16" | Straight Front 3 Stage reach from 22 7/8" to 42 5/8" | |||||||
| Back Arms | Straight Rear 3 Stage reach from 37 1/2" to 72 3/16" | Straight Rear 2 Stage reach from 33 5/8" to 52 7/8" | |||||||
| Column Steel Thickness | 1/4" | 13/64" | |||||||
| Carriage Steel Thickness | 1/4" | 15/64" | |||||||
| Carriage Yoke Thickness | 3/4" | 9/16" | |||||||
| Arm Steel Thickness | 5/16" | 15/64" | |||||||
| Base Plate Steel Thickness | 13/16" | 5/8" | |||||||
| Truck Adapters (Height Extensions) | Two Sets: 3" Tall and 6" Tall | One Set: 4" Tall | |||||||
| Other Parts Included |
| ||||||||
| Optional Parts | 2 3/4" and 6" Tall Truck Adapters | ||||||||
| Concrete Requirement | 6" thick at 3500 psi reinforced with fiberglass or steel (4" thick for vehicles 9000LB and below) | ||||||||
Features
- Direct drive mode
- Durable hydraulic system
- Easy to operate and maintain
- Single point safety lock release
- Double Seal Rings Protecting PU Material
- Carriage Material Q355 (ASTM A572), Stronger Than Normal Q235 Steel
- Lifting operation by pressing "UP" button on motor
- Manual lowering operation by pressing lever
- Relief valve built in power pump to prevent overloading
- Automatic arm lock restraints
- Relief valve built in power pump to prevent overloading
- Door guards protection rubber
- Up-limit switch to protect cylinders working stroke used in safe length scope
- Heavy duty 3/8" diameter cable and 4 5/16" pulley that reduce high stress on synchronization process and increase cable life
- Ultra high molecular self lubricating nylon slider that ensures carriage smooth moving up and down
