ATLAS PV12PX 12,000 lb Overhead 2-Post Lift
$ 3,249
$ 5,249
The Atlas® PV series represents the absolute best value for the customer who demands a heavy-duty professional grade two post lift at the lowest possible price. Atlas® has been manufacturing the PV series two post above ground lifts for over a decade. Thousands sold! Descriptions such as “bulletproof”, built like a brick outhouse, tougher than nails, and other such euphemistic phrases are used every day to describe any of the Atlas® PV series models.

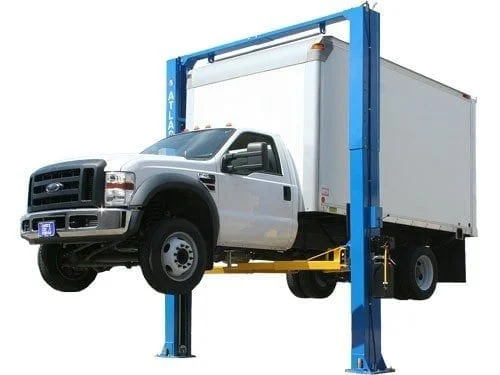

The Atlas® PV12PX is a commercial grade lift designed to accommodate both long wheel-base trucks and because of a low pad height, passenger cars. The distance between the symmetrical columns is 123″ with a drive through space of 109″. The extra distance between the symmetrical columns will allow the widest of vehicles or vehicles with wide rearview mirrors to be lifted or driven through. The increased length of the symmetrical arms coupled with the additional height of the included peg style truck adapter set allows the operator to safely raise long wheel-base trucks with a variety of running boards. The extra height means extra clearance allowing you to lift vans and box trucks without worry.
The Atlas® ATEXH-PV12PX features three height settings, the lowest setting of 150 inches or 12 foot 6 inches requires the purchase of extra short cables.
FEATURES :
- 12,000 lb. capacity
- Extra Tall & Extra Wide
- Commercial Grade
- Adjustable height 150″ (12′ 6″) or 165″ (13′ 9″) or 177″ (14′ 9″)
- Special low height 150″ (12′ 6″) (Requires purchase of extra cables)

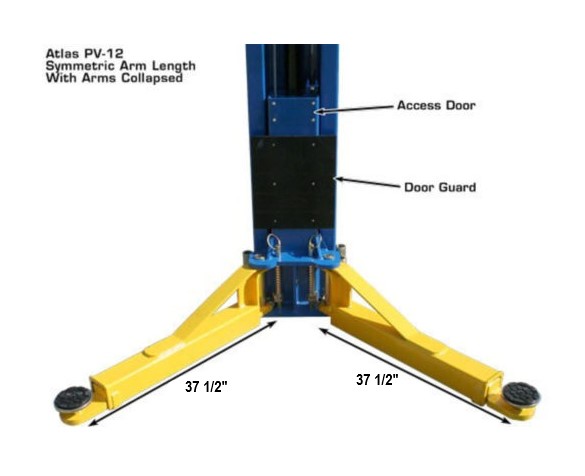

- Symmetric arms
- Automatic Arm Restraints

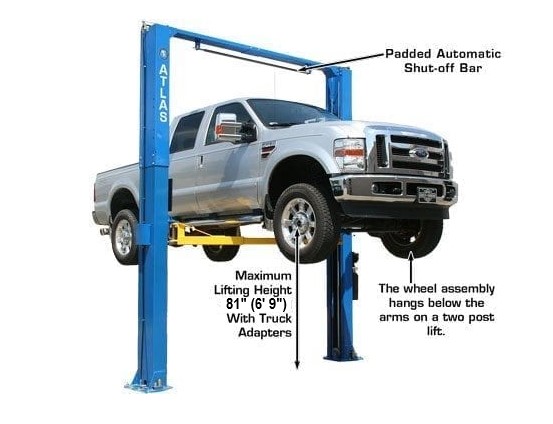

- “Padded” Shut-Off Bar
- Door Guards on Carriages
- Single Point Lock Release
- Direct-Drive Cylinders
- Powder Coat Finish
- Free 12 Piece Truck Adapter Set
- Mounting Hardware Included
- Shipping weight: 2,160 lbs.
- 5 yr. Structural – 2 yr. Hydraulic – 1 yr. Power Unit – Parts Only Warranty
SPECIFICATIONS :
| Atlas® ATTD-PV12PX Specifications | ||
| Capacity | 12,000 LB. | |
| Overall Height | 165" (13’ 9”) or 177” (14’ 9”) | |
| Special Low Height | 150" (12’ 6”) (Requires Purchase of Extra Cables) | |
| Overall Floor Width | 150 3/4" (12’ 6 3/4”) | |
| Outside Column to Outside Column | 139 1/8" (11’ 7 1/8") | |
| Maximum Lift Height (Without Adapters) | 72 1/4" | |
| Maximum Lift Height (With Adapters) | 81" | |
| Minimum Arm Height | 4 1/2" | |
| Inside Column | 123 1/2” (10’ 3 1/2”) | |
| Drive Thru | 109 1/2" (9’ 1 1/2”) | |
| Column Size | 7 1/2" x 14 1/2" | |
| Column Thickness of Steel | 6mm | |
| Base Of Lift | 17 1/2" x 20 1/2" | |
| Motor/Electrical Requirement | 220 volt single (1) phase. A 30 amp breaker is recommended | |
| Oil Requirement | 3-5 Gallons AW32/AW46 (NOT INCLUDED) | |
| Shipping Weight | 2,160 LBS. | |
| Adapter Heights | 4 Each 1.25”, 2.5”, 5” | |
| Arm Hole/Adapter Peg Size | 1.5” | |
