Warranty:

12 months warranty on all metal parts, pneumatic parts, electrical parts and motors! When you choose us, you will get the BEST warranty.

Most of the sellers don't provide or only provide warranty for those parts for 3 or 6 months, 1 year at most. Please compare with others before you make the decision. Get into our shop and you will see the details of terms and conditions, especially the best warranty!

Factory Defective Items:

Refunds issued for defective items will be for the full purchase price of the item.

If a replacement is requested, there will be no additional cost for shipping the replacement if your item is found to be defective

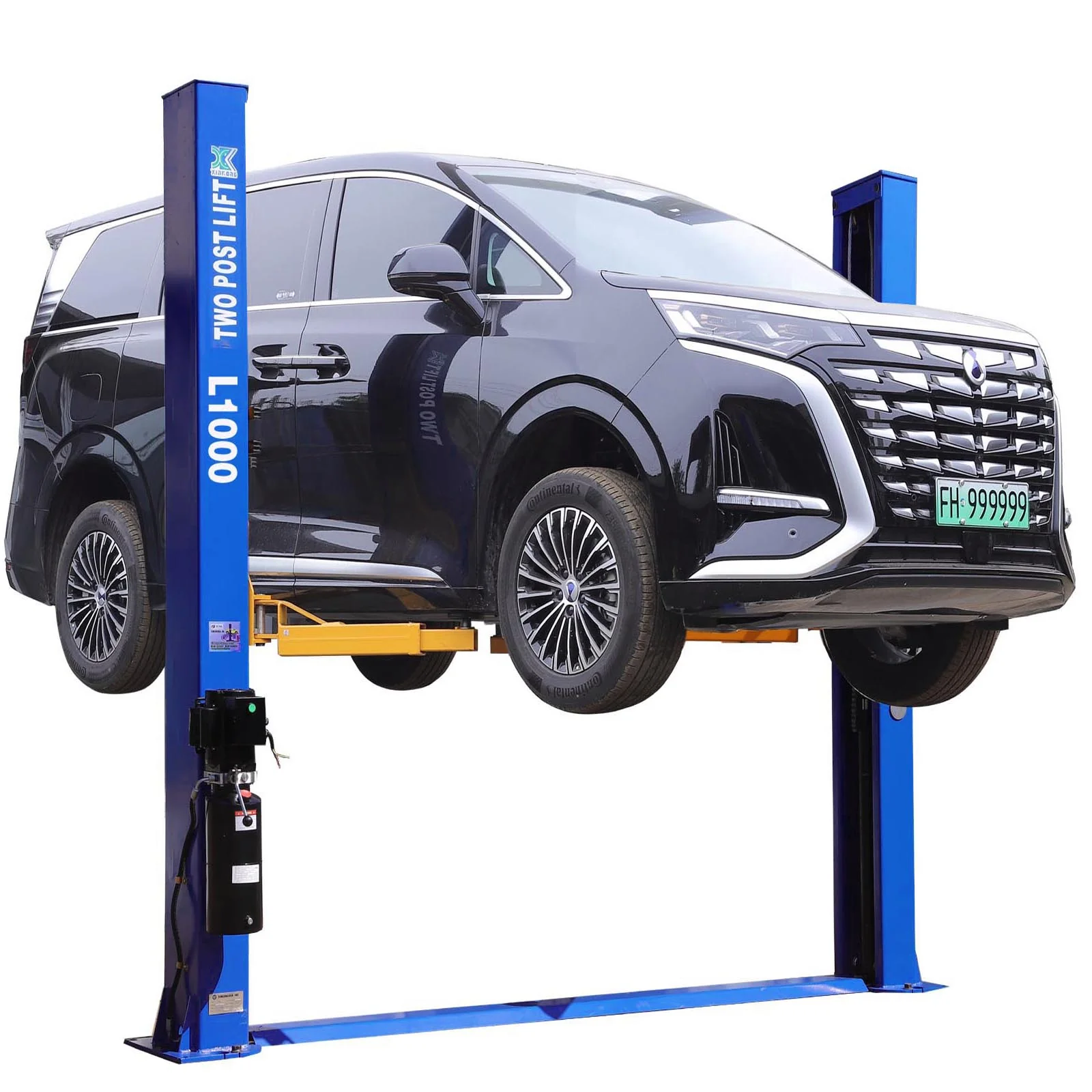

AUTO CAR LIFT  L 1000 TWO POST BASE PLATE

Features:   220V 60HZ  1PH   3HP MOTOR

Free adjustable truck pads truck adapters included

Safety Mechanism:

• Double Point Safety Lock Release
• Automatic arm lock restraints
• Relief valve built in power pump to prevent overloading
• Door guards protection rubber
• Heavy duty 5/16" diameter cable and 4.56" pulley reduce high stress on synchronization process and increase cable life
• Stiffened base plate 5/8" thickness
• Ultra high molecular self lubricating nylon slider ensures carriage smooth moving up and down
• Anchor bolts/mounting hardware included

Control System

• Lifting operation by pressing "UP" button on motor
• Manual lowering operation by pressing lever
• Relief valve built in power pump to prevent overloading
• 1 sets truck adapters included
• Lifting Capacity: 10,000 lbs

The overall Height 110-1/4"

• The overall Width  130"
• Column Width    10.62"
• Base Width   18.89"
• Column Thickness of Steel    3/16"
• Carriage Thickness of Steel   15/64"
• Arms Thickness of Steel     15/64"
• Front Arm    30.7" to 48"
• Rear Arm     30.7" to 48"
• Min pad height: 3-7/8"
• Lift height max: 78-7/8"
• Drive-thru width clearance: 99 19/32"
• Time to full rise: 20-60 sec
• Shipping Weight: 1350 lbs

Site Selection

Before installing your auto lift, check the following:

• Lift Location: Always use architect’s plans when available.  Check layout dimension against floor plan requirements making sure adequate space is available.  Your lift requires a 220v or 110V, 30amp, single phase, grounded electrical source.  There should be room enough to operate the lift in a safe manner and without restrictions.
• Overhead Area: The area where the lift will be located should be free of overhead obstructions such as heaters, building supports, electrical lines, doors, lights, etc.
• Floor Area: Visually inspect the site where the lift is to be installed and check for cracked or defective concrete.

Floor Requirements

• A level floor is suggested for proper installation and level lifting.  Small differences in floor slopes may be compensated for by proper shimming.  If a floor is of questionable slope, consider a survey of the site and/or the possibility of pouring a new level concrete slab.
• New concrete must be adequately cured for at least 30 days.

DO NOT install auto lift on any asphalt surface or any surface other than concrete.

DO NOT install auto lift on expansion seams or on cracked or defective concrete.

DO NOT install auto lift on a second/elevated floor without first consulting building architect.

DO NOT install auto lift outdoors unless special consideration has been made to protect the power unit from inclement weather conditions.

Concrete Specifications

All models MUST be installed on 3,000 PSI reinforced concrete only.  Additional concrete requirements will vary by lift.

8,500 lbs – 10,000 lbs lifts: 4″ Minimum Thickness

11,000 lbs – 15,000 lbs lifts: 6″ Minimum Thickness
